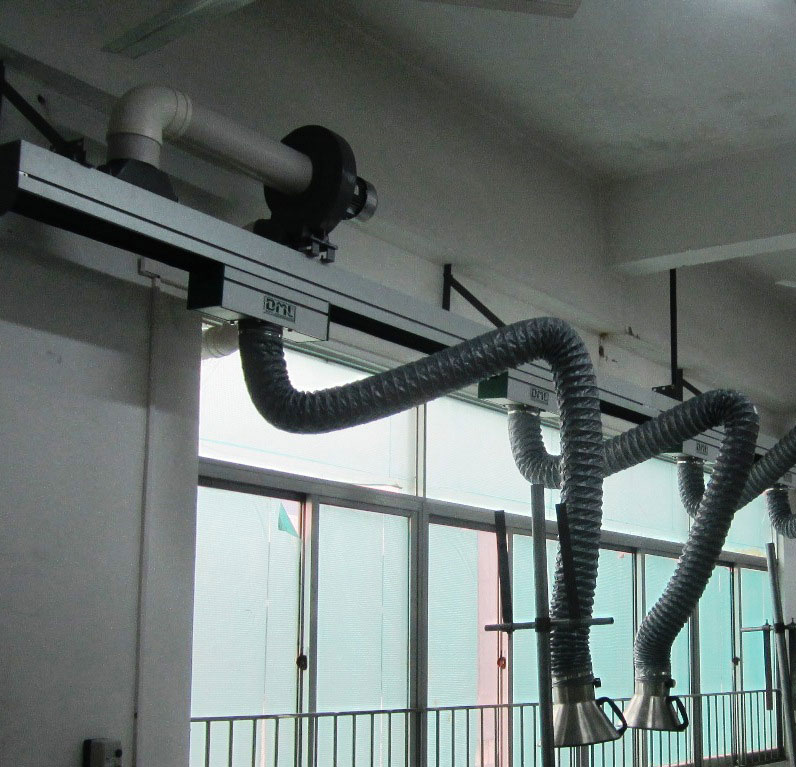

Slide rail type welding smoke suction system

Product description:

Name: Slide rail type welding smoke suction system

Especially designed for use with gas, vapor or explosive dust work environment,

The typical workplace is a metal manufacturing or other industrial pumping needs,

Can be used in welding, grinding, or other activities needed Easy positioning arm industrial processing applications, standard products included suction hood damper.

Features / Parameters

DML-HY2: exhaust suction for welding station, single station can also be used with mounting rail mounting. Each welding fume arm length 2 m

Flexible suction arm supported by an internal spring parallelogram frame, as well as the throttle valve with integral hood This suction arm without the help of auxiliary facilities can stretch to its long arm can reach any location. It the inner frame has a high flexibility, put the hose outside diameter of 160 mm.
Hood can rotate 360 degrees. Whether welders in the side or back of the suction arm, the hood can make in the best position of the absorption - corresponding longitudinal welded contacts. Slide style with sliding joints welding smoke arm. can be more extensive coverage of more welding station for use without a fixed welding station. More suitable for vehicle maintenance and industrial production and other occasions.

DML-HY3: exhaust suction for welding station, single station can also be used with mounting rail mounting. Each welding fume arm length 3 m
Flexible suction arm supported by an internal spring parallelogram frame, as well as the throttle valve with integral hood This suction arm without the help of auxiliary facilities can stretch to its long arm can reach any location. It the inner frame has a high flexibility, put the hose outside diameter of 160 mm.
Hood can rotate 360 degrees. Whether welders in the side or back of the suction arm, the hood can make in the best position of the absorption - corresponding longitudinal welded contacts. Slide style with sliding joints welding smoke arm. can be more extensive coverage of more welding station for use without a fixed welding station. More suitable for vehicle maintenance and industrial production and other occasions.
